| MODEL NUMBER |
AOI UIS-P1 |
| DESCRIPTION |

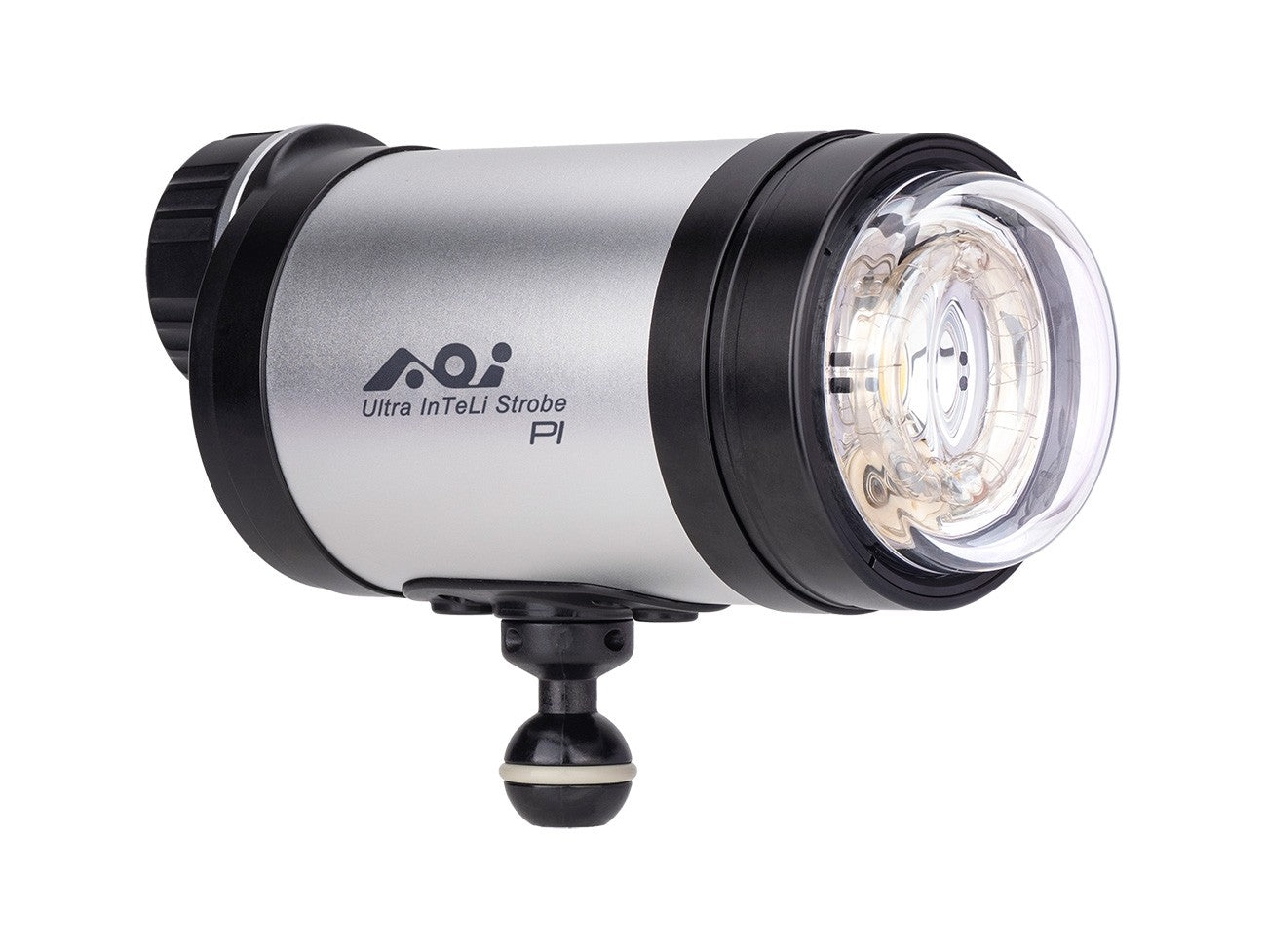

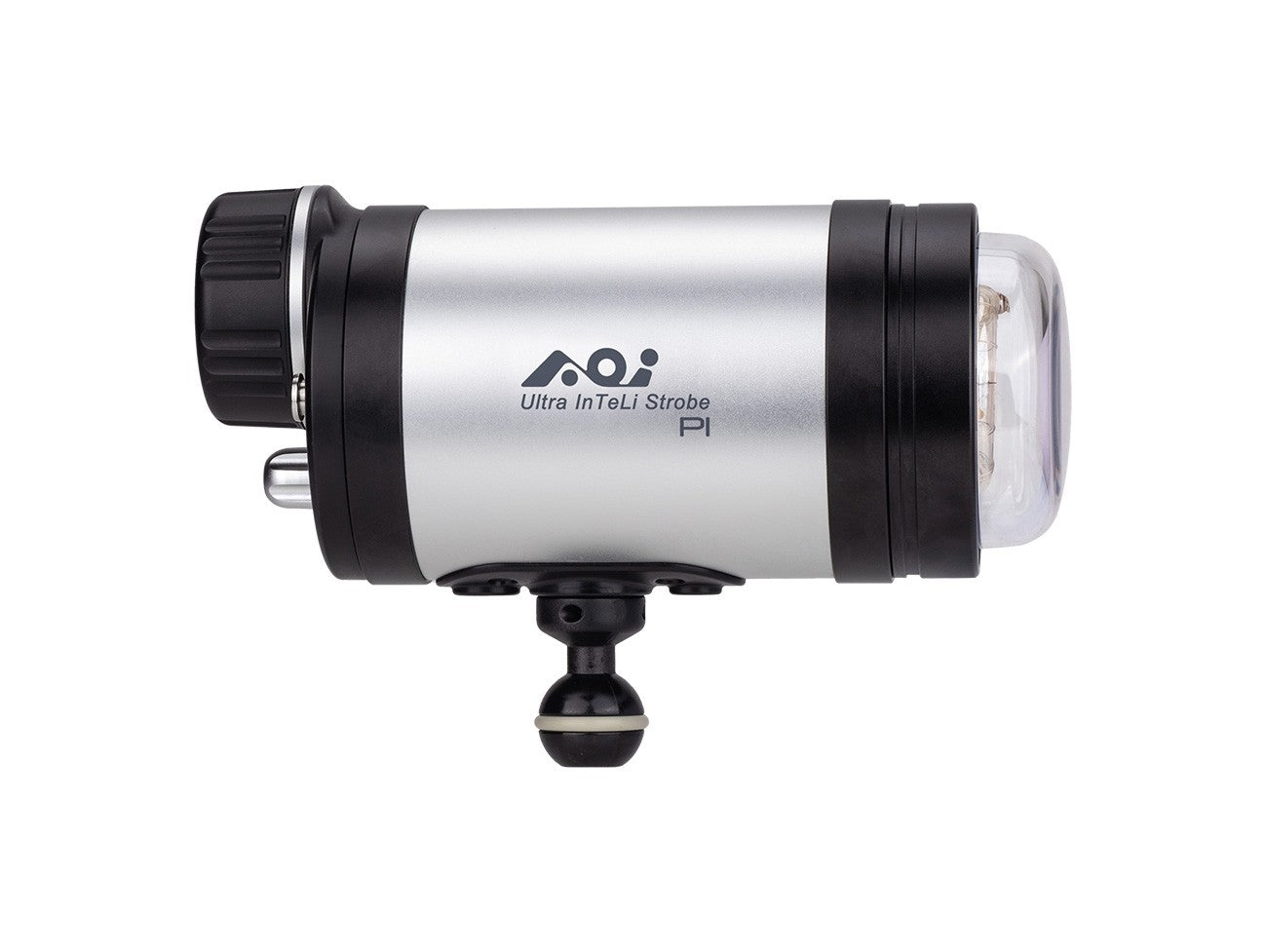

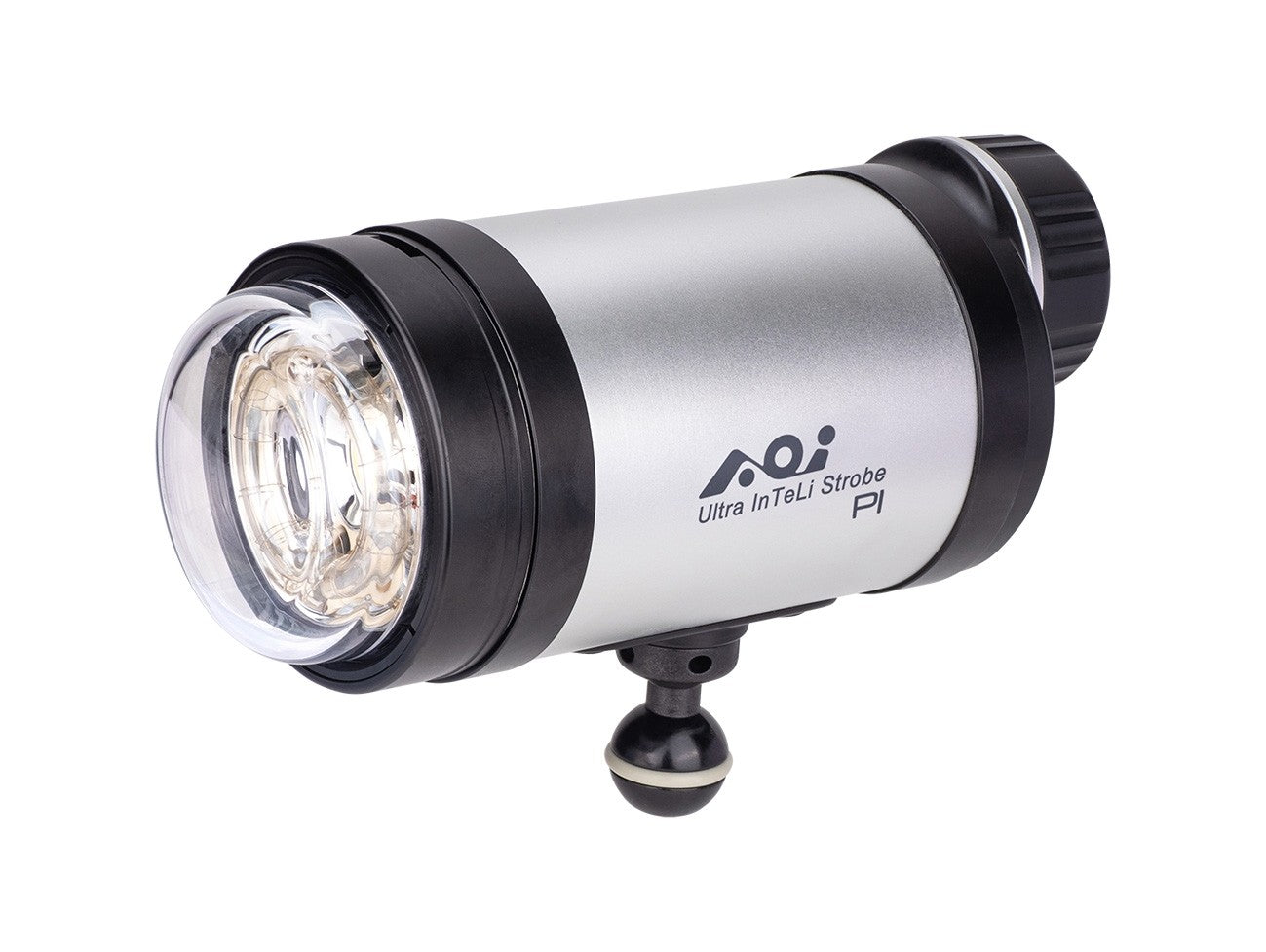

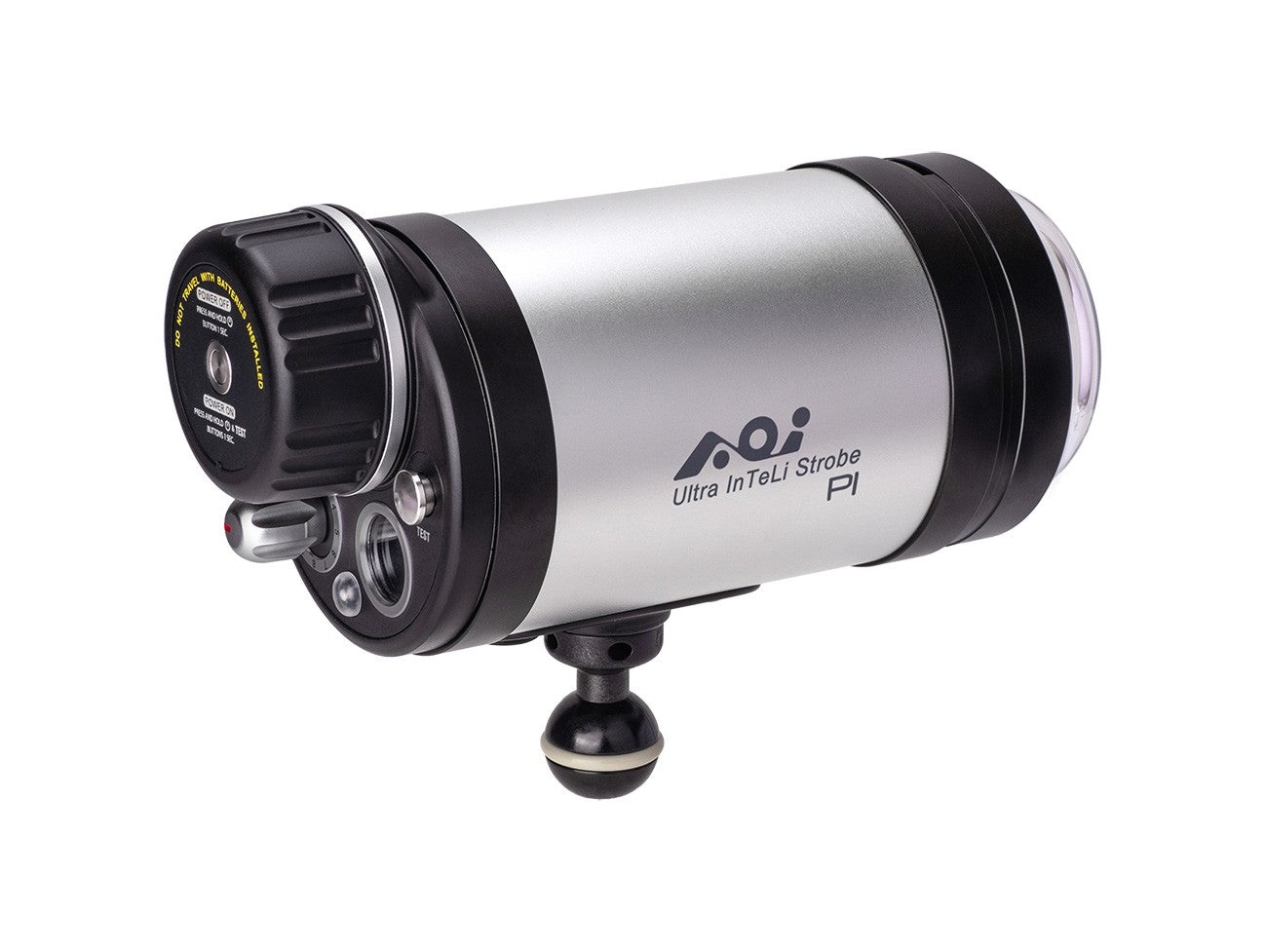

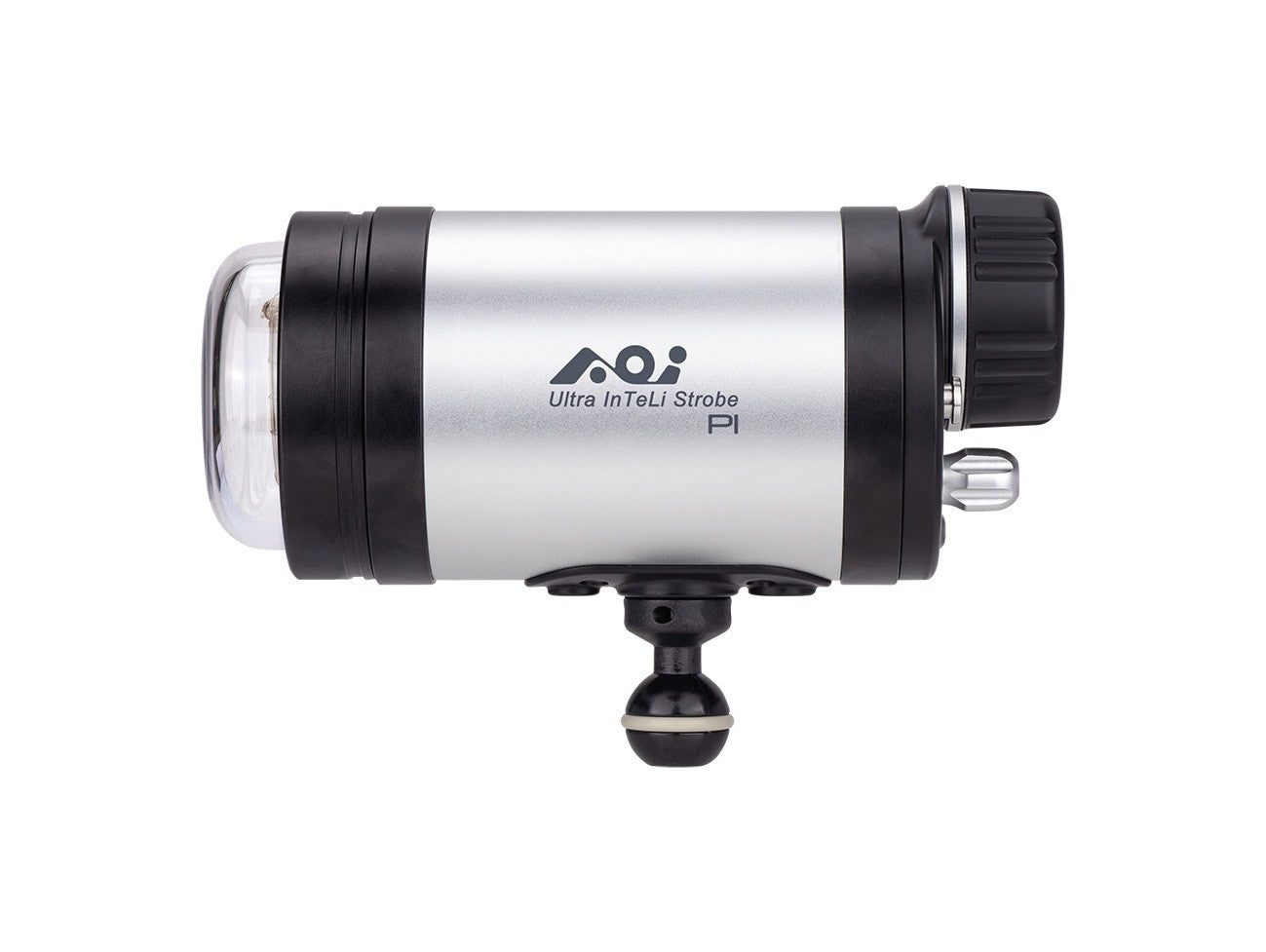

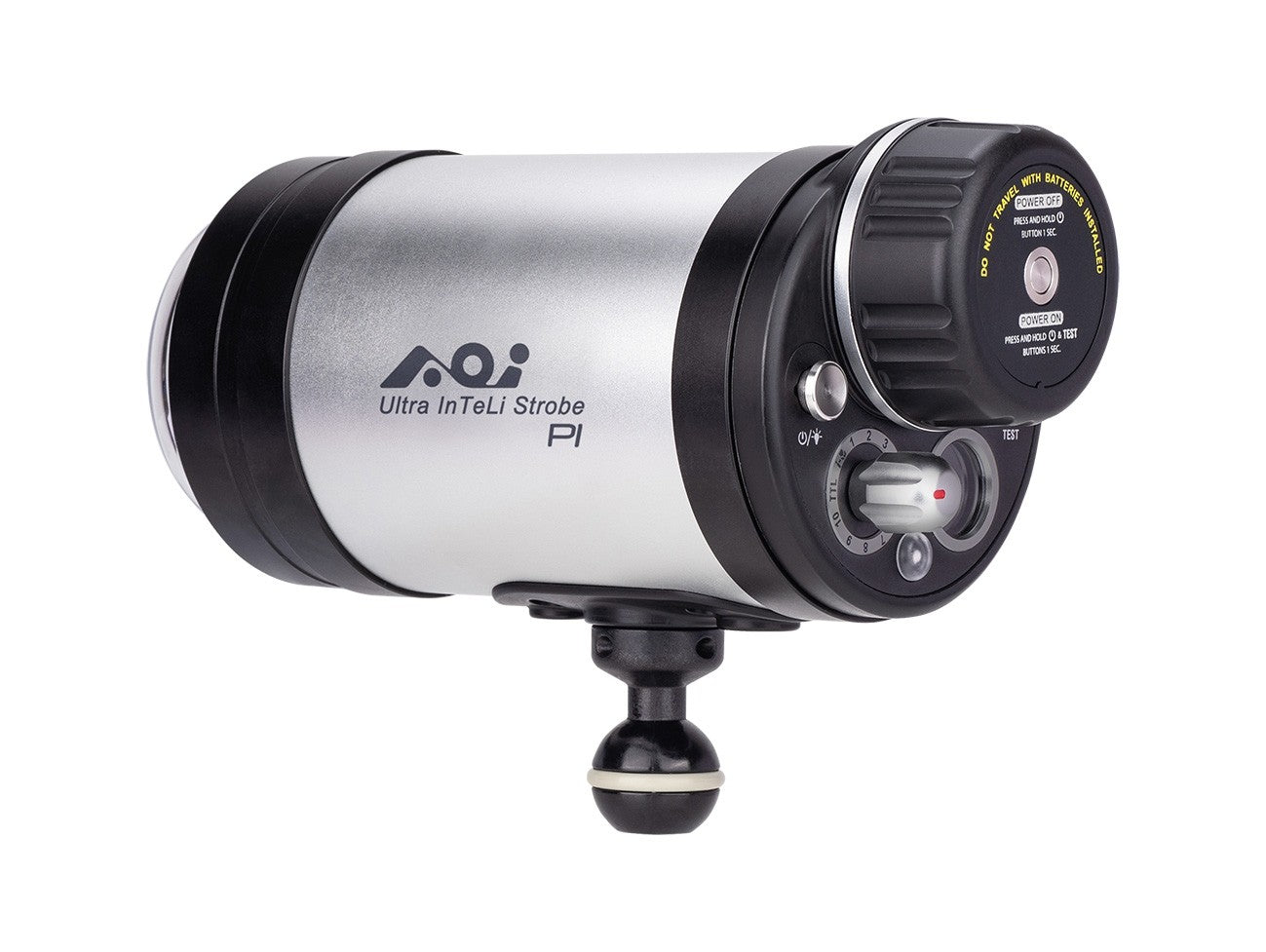

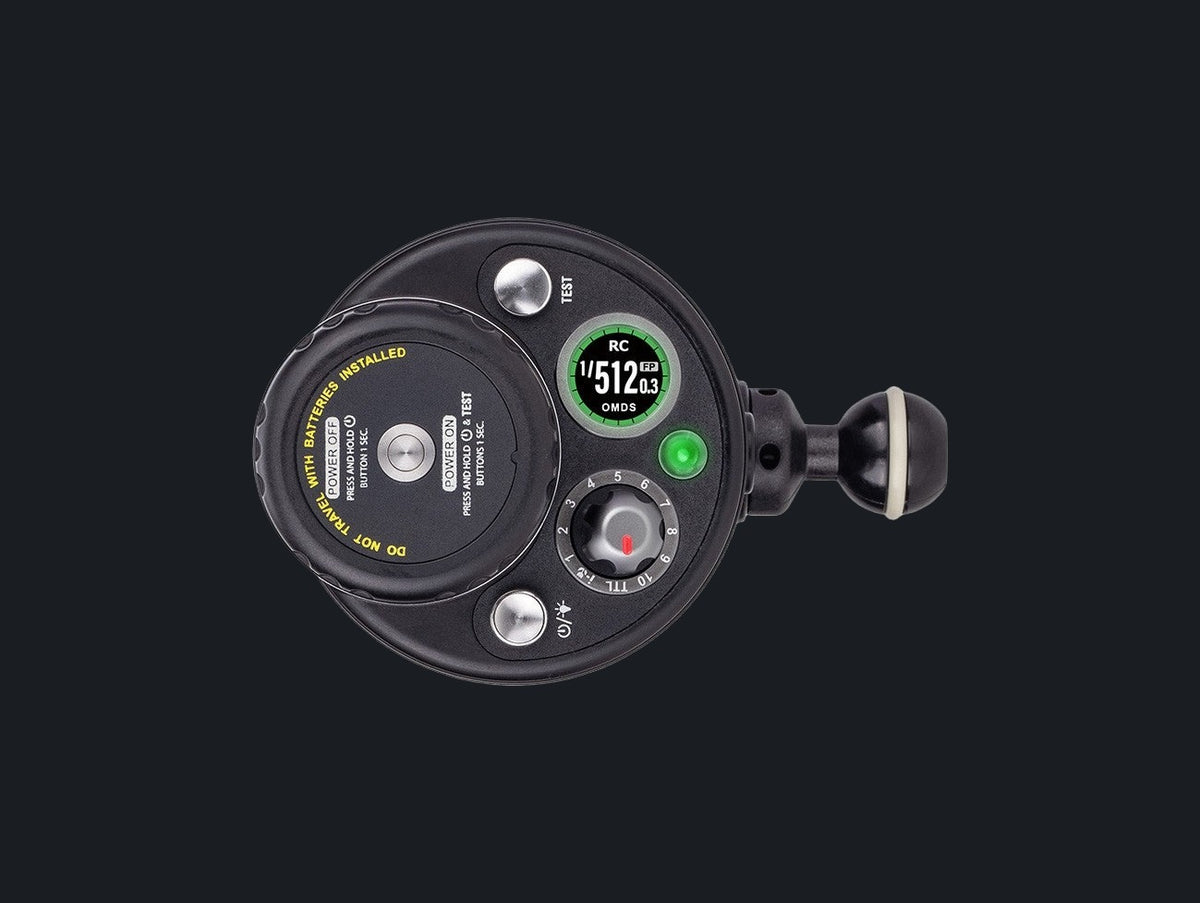

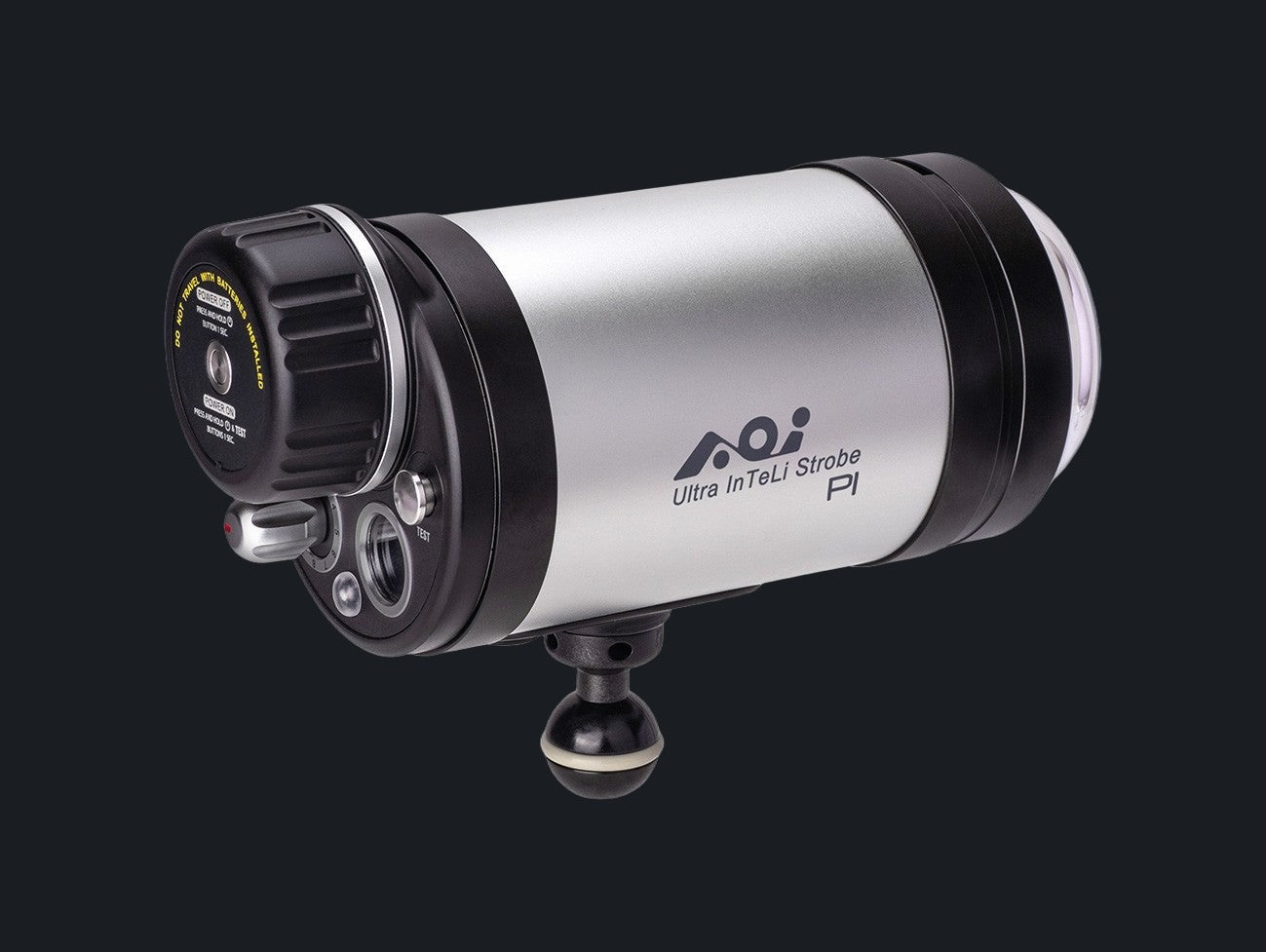

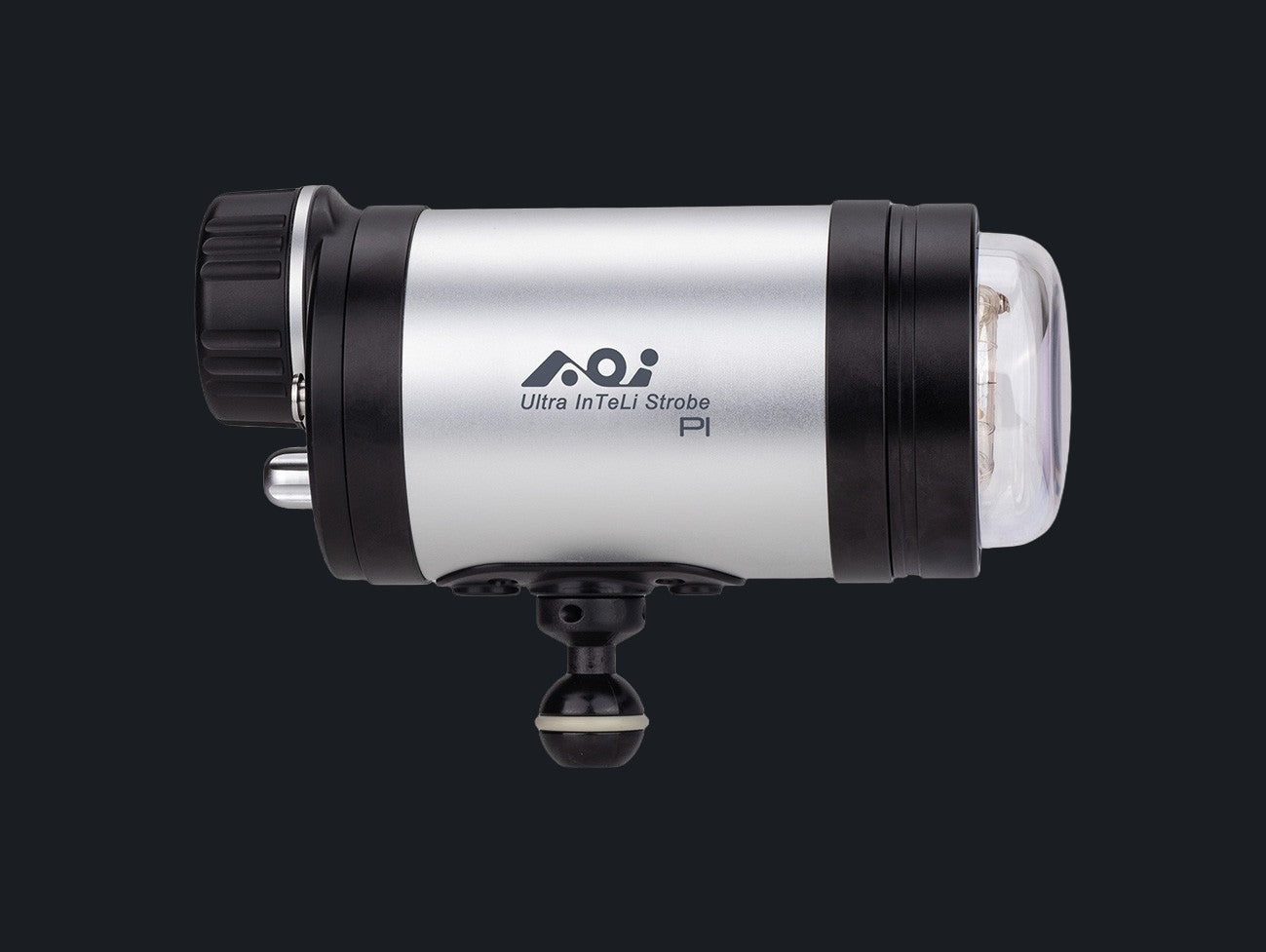

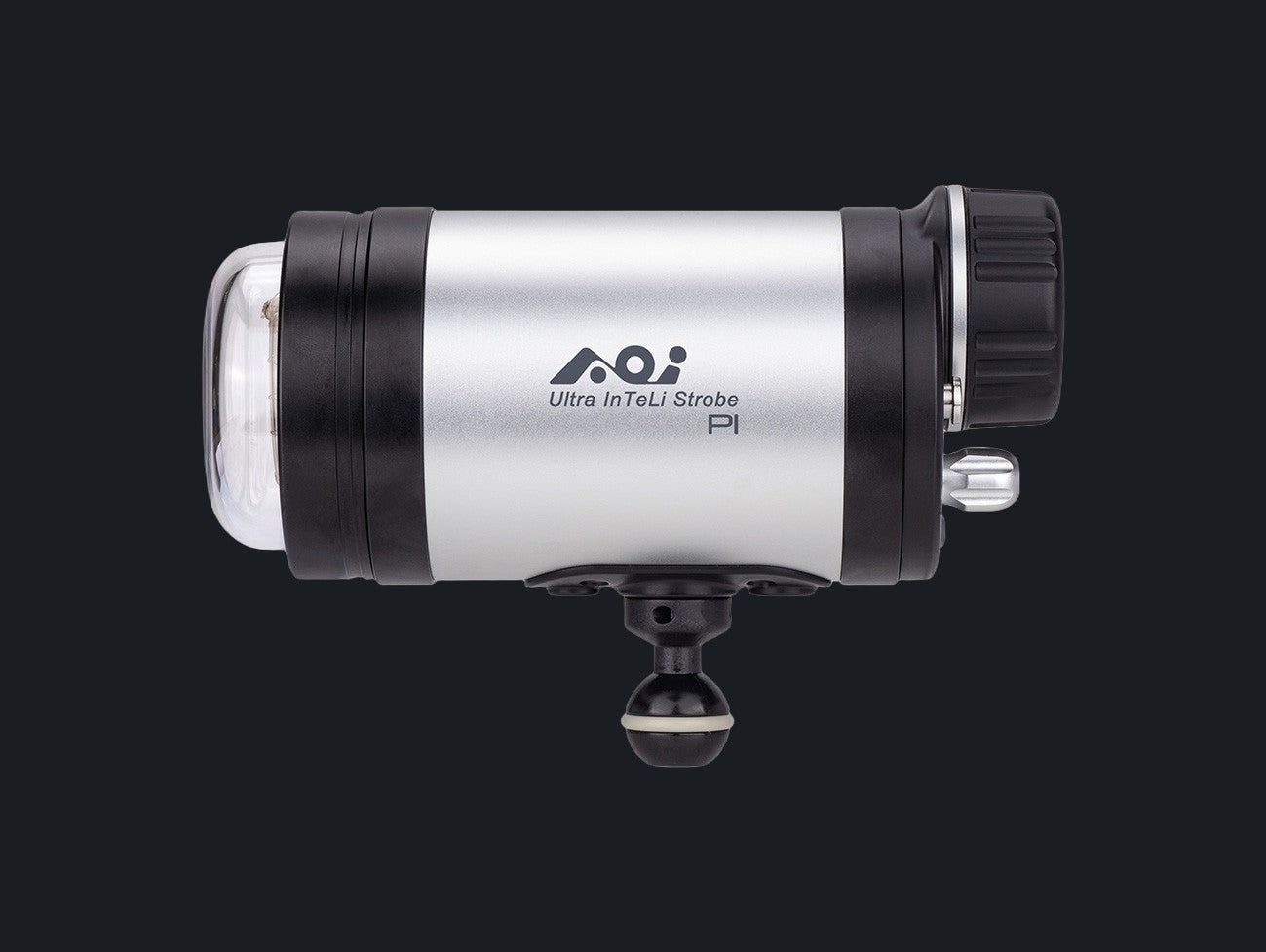

Ultra InTeLi Strobe - Performance 1 |
| MAIN BODY COLOR |
Silver |
| MAIN BODY MATERIAL |
PC + GF, Alluminum Alloy With Hard Anodization |
| DEPTH RATING |
100 Meters |
| STROBE |
Energy |
150 Ws |
| Beam Angle |
150 Deg. |
| Color Temperature |
5,900K |
| Flash Recycle Time |
1.8 sec. |
Full Power with 5,300mAh, 20A, Li-ion Battery |
| Number of Flashes |
540 |
| Flash Sync.Cord |

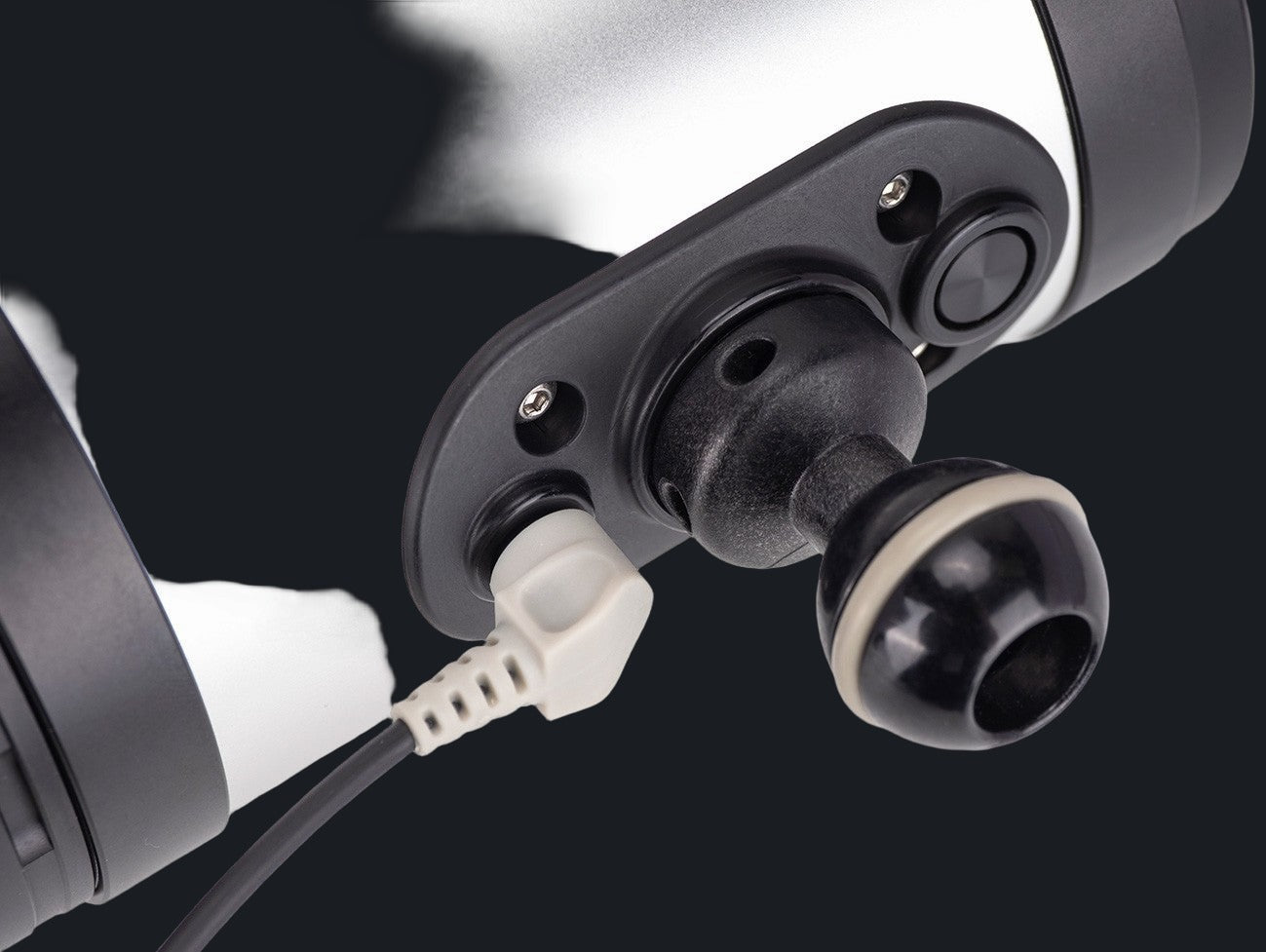

Fiber Optic |
| Pre-flash Sync. |
ON / OFF Setting |

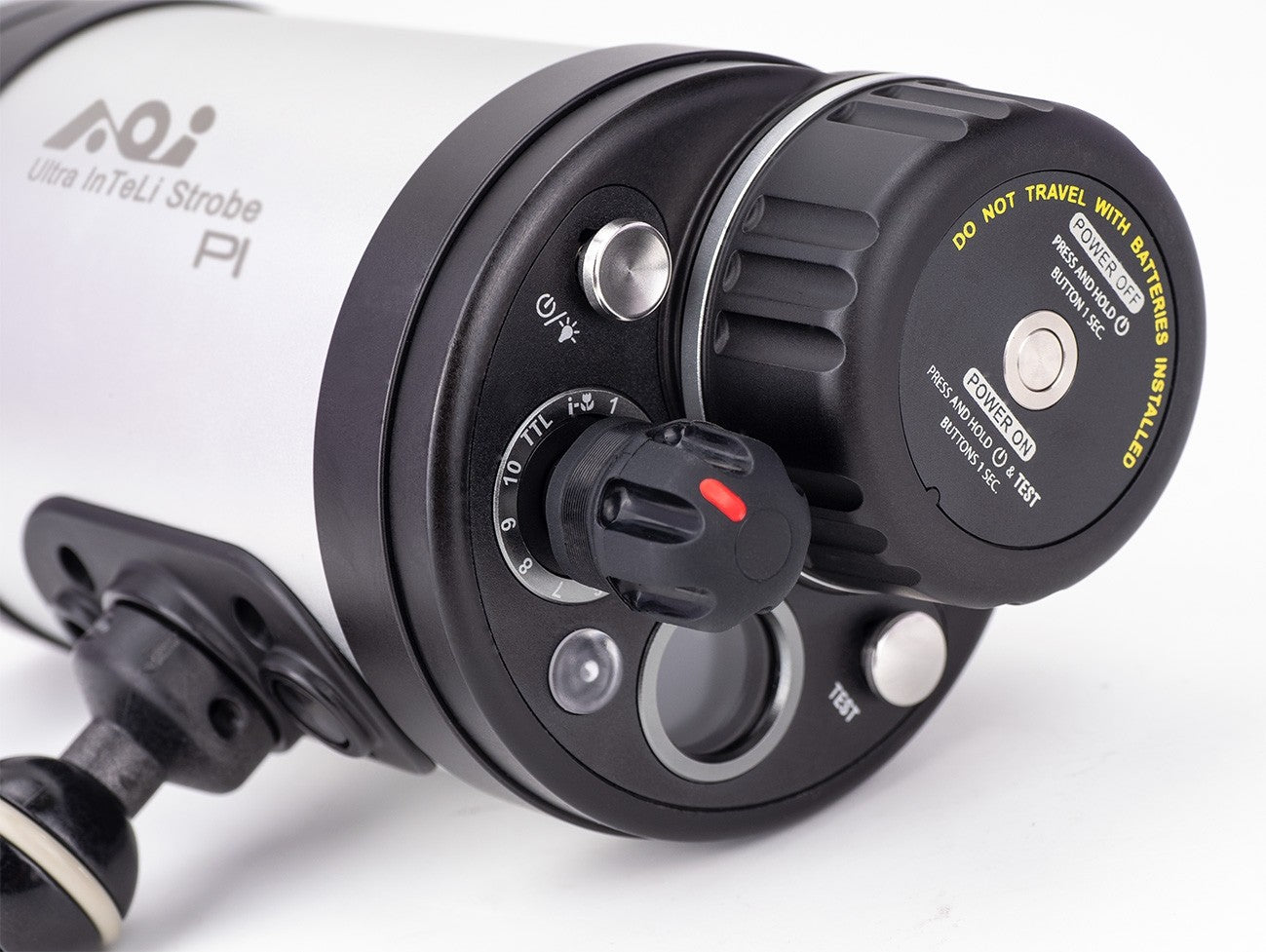

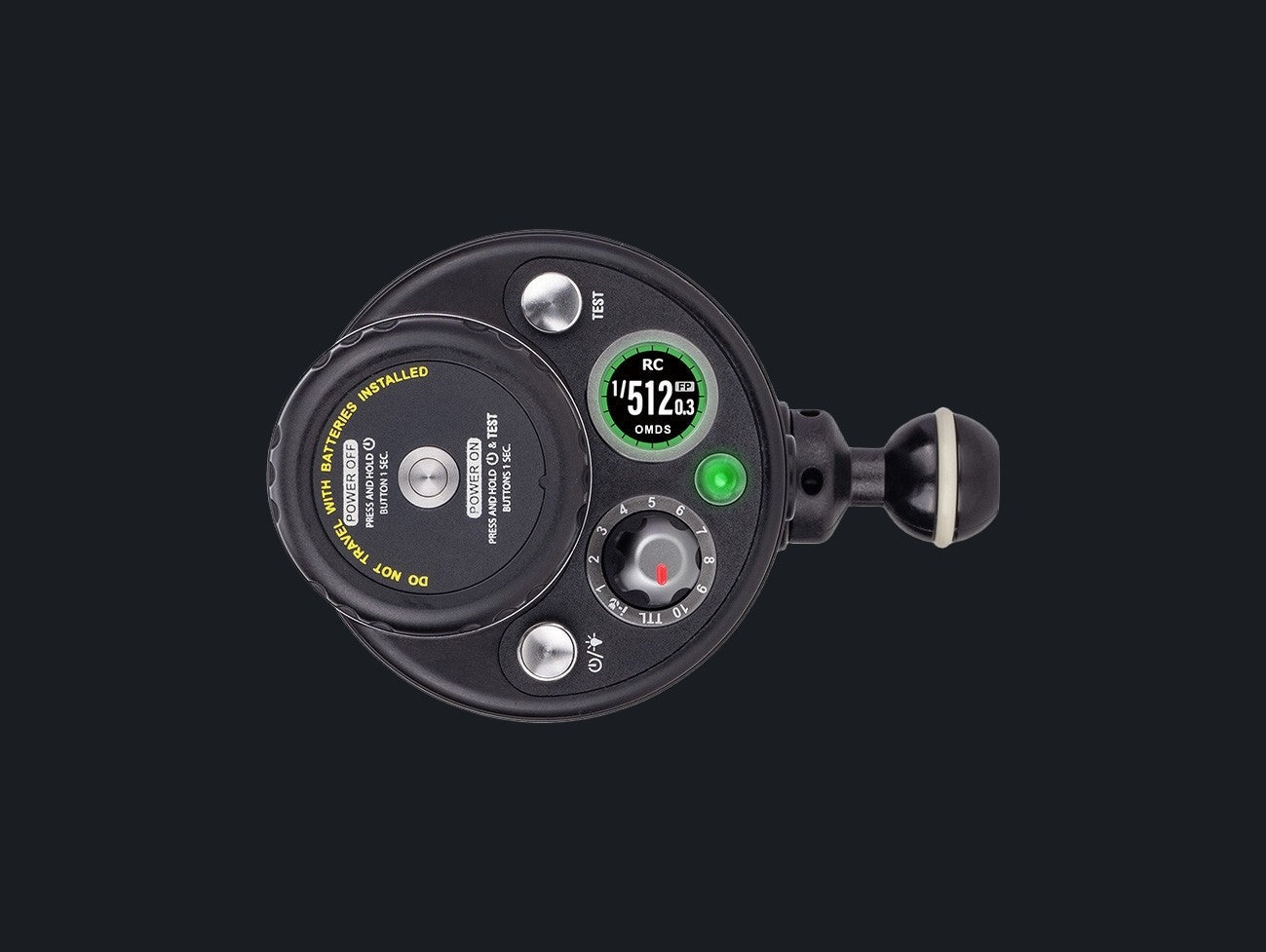

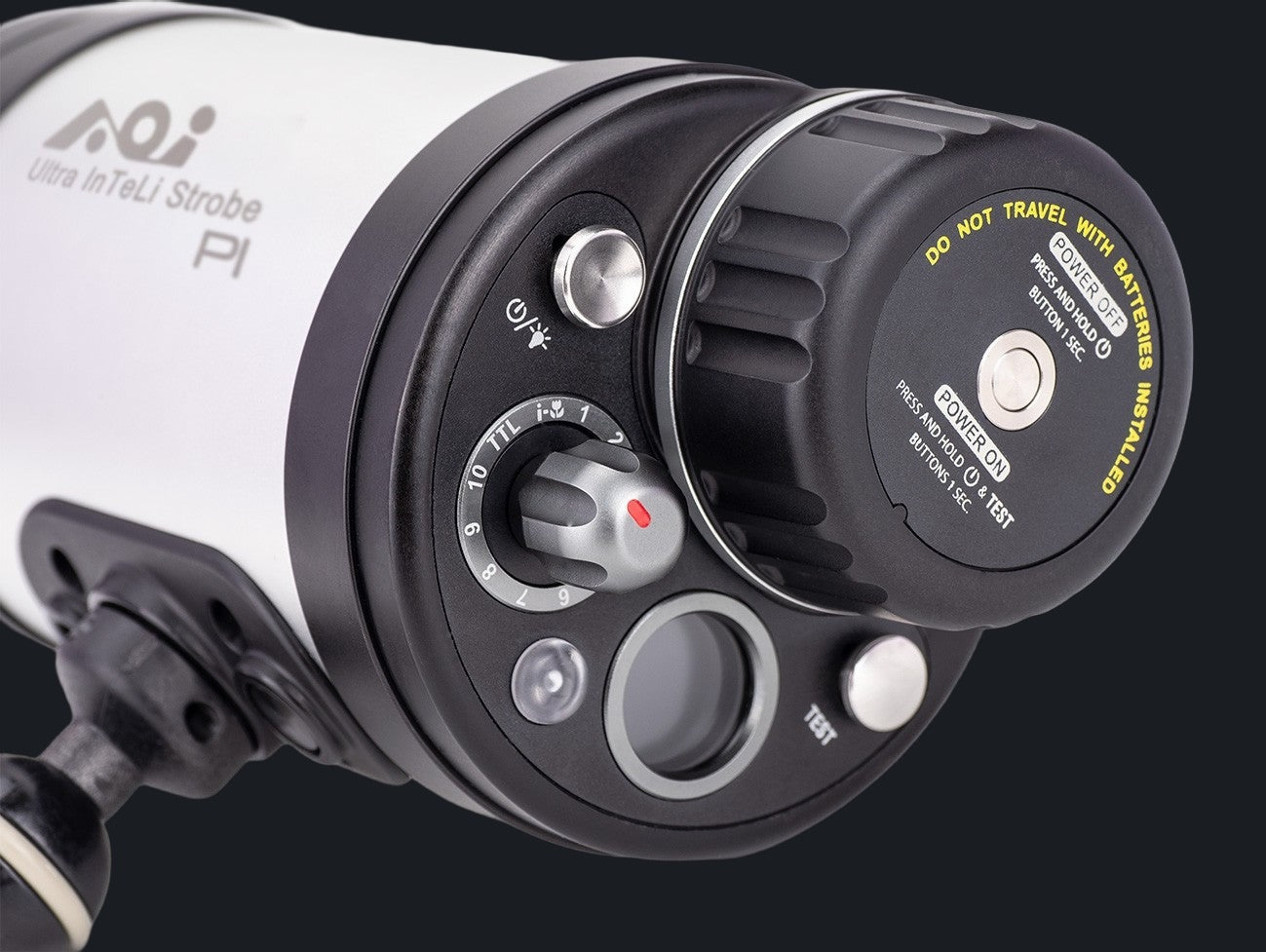

| Flash Test Button |
Yes
|

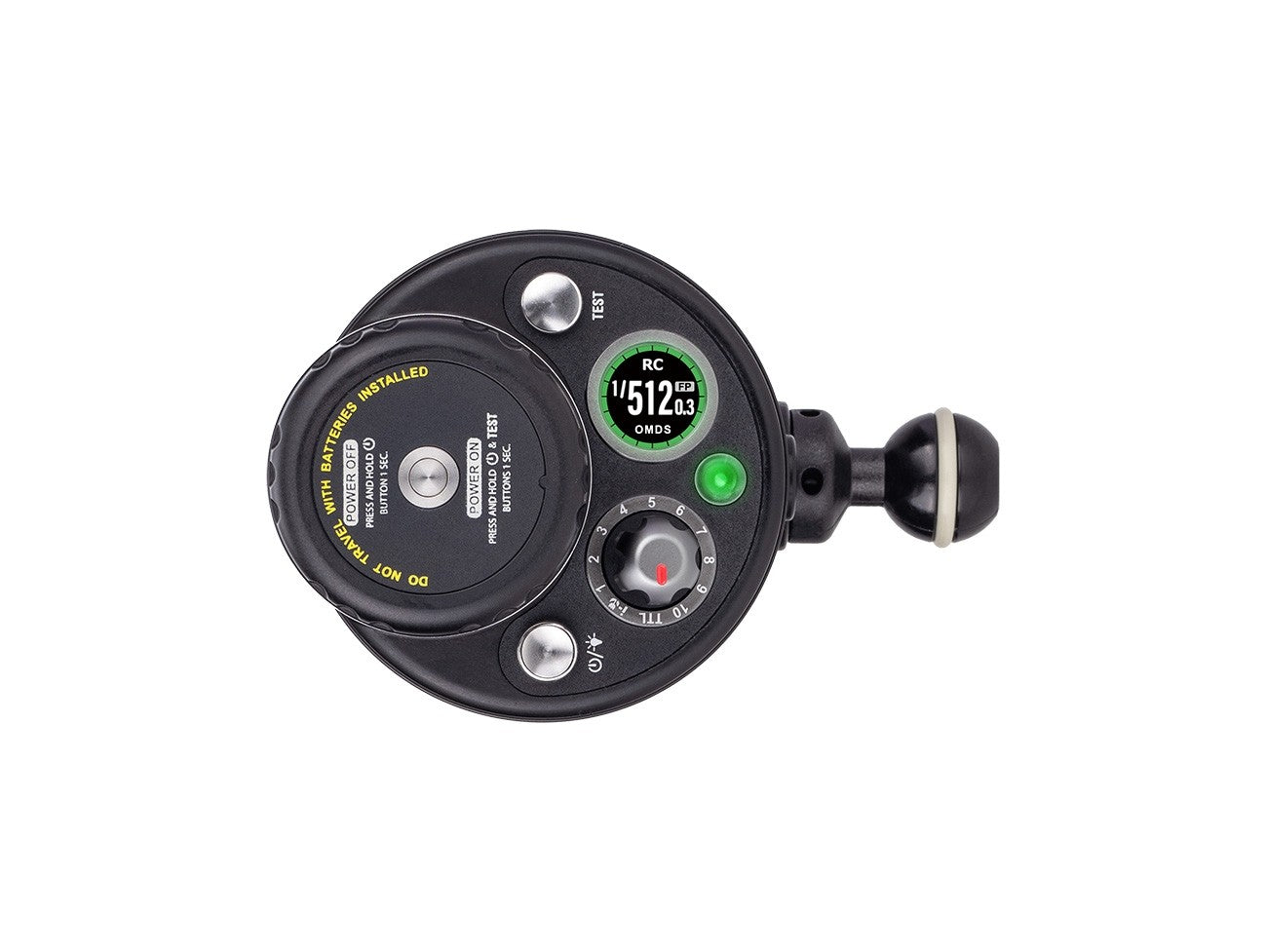

| Flash Modes |
RC / TTL
Mode |
OM System Cameras:RC FLASH (TTL AUTO, MANUAL,
FP TTL AUTO, FP MANUAL)
CH 1, 2, 3, 4, Group A, B, C
Sony Cameras:TTL, TTL-HSS
|
| i-Macro Mode |
| M Mode |
Manual / M-HSS Setting:1/32+0.5, 1/16, 1/16+0.5, 1/8,
1/8+0.5, 1/4, 1/4+0.5, 1/2, 1/2+0.5 & 1/1
|

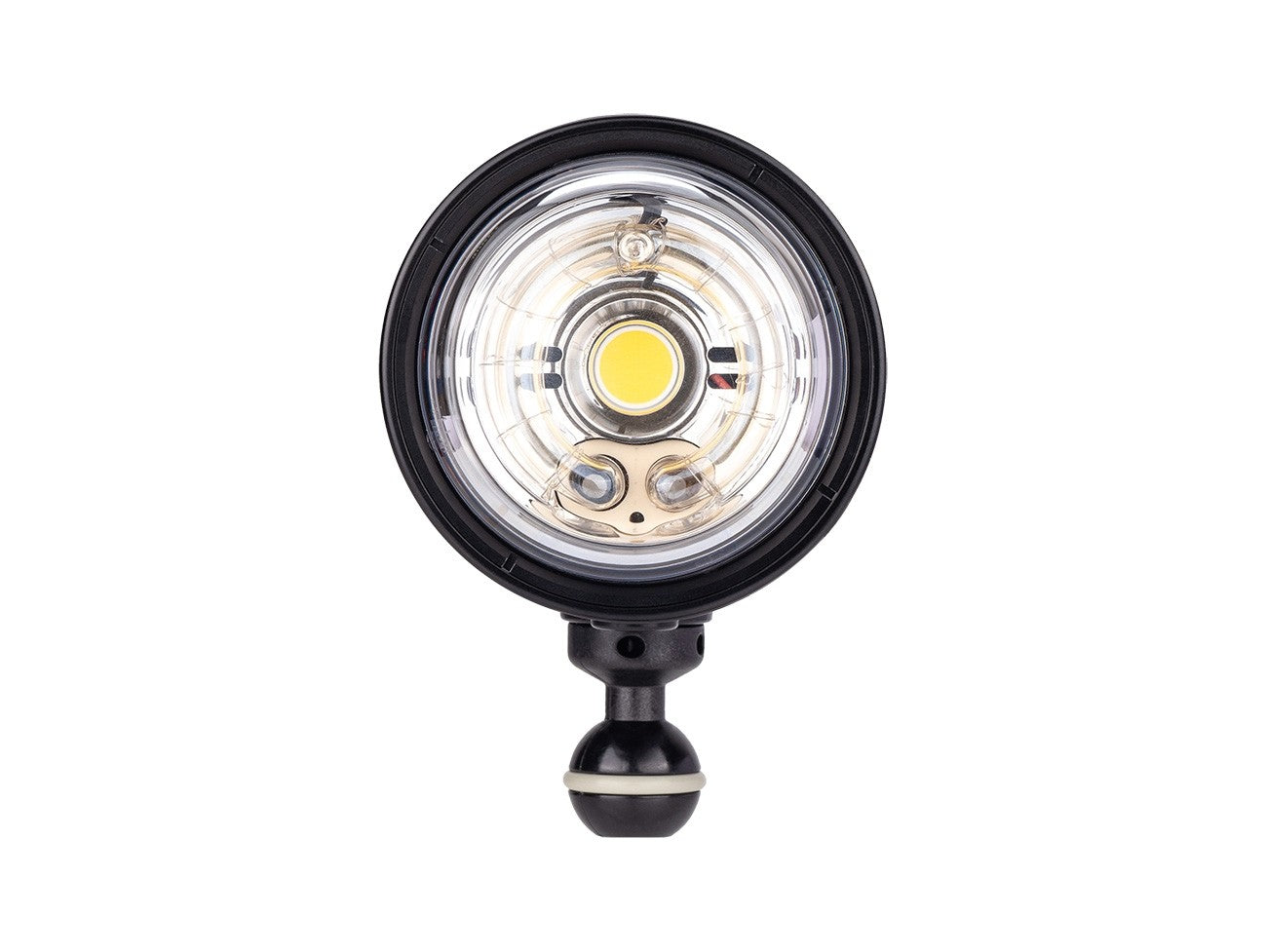

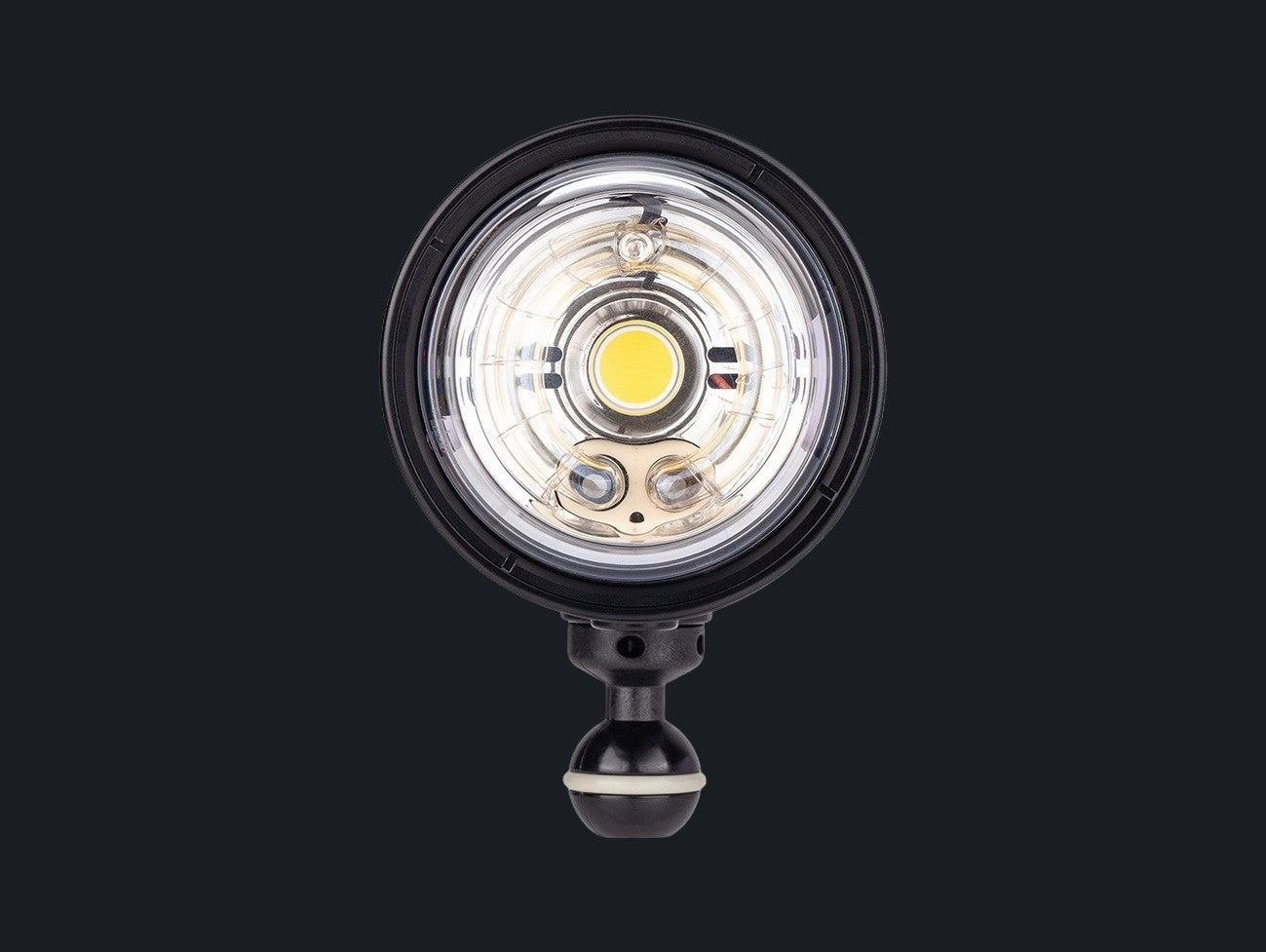

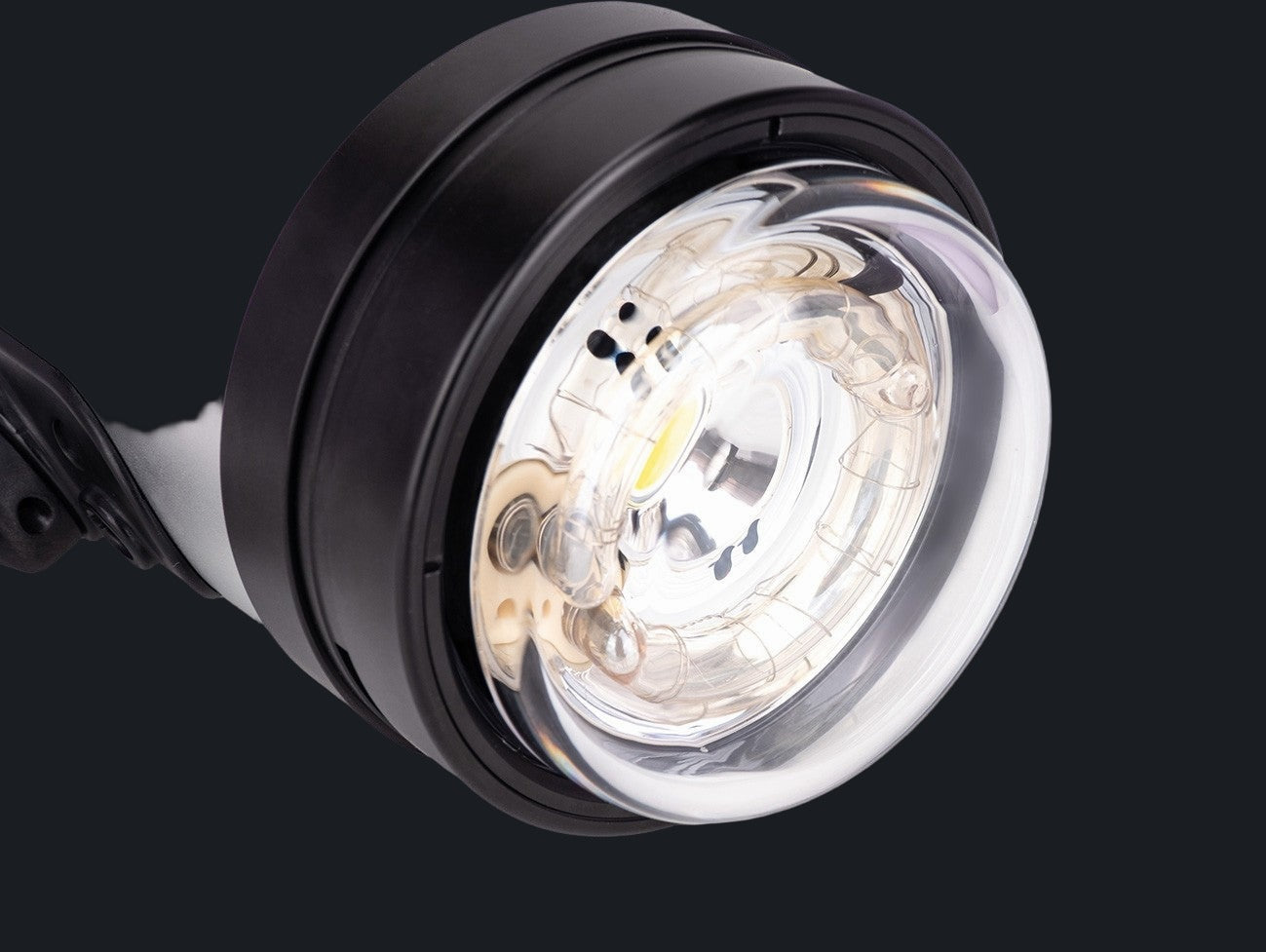

| COB LIGHT |
Maximum Output |
Measured
On Land with
Standard Diffusor |
3000 Lumens |
| Color Temperature |
4500K |
| Beam Angle |
100 Deg. |
| Power Control |
Off, 100%, 50%, 25% |
| Flash Auto Shut-off |
Yes |
| Burn Time |
60 Minutes (Using COB Light Only, Max. Brightness and with 5,000 mAh, Li-ion Batteries) |
| BATTERY REQUIREMENTS |
21700 Li-ion Rechargeable Battery x 2pcs (Batt Not Included In Product) |
| Output Current |
Min. 15A |
| Capacity |
Min. 5,000 mAH |
| Battery Protection PCB |
Required |

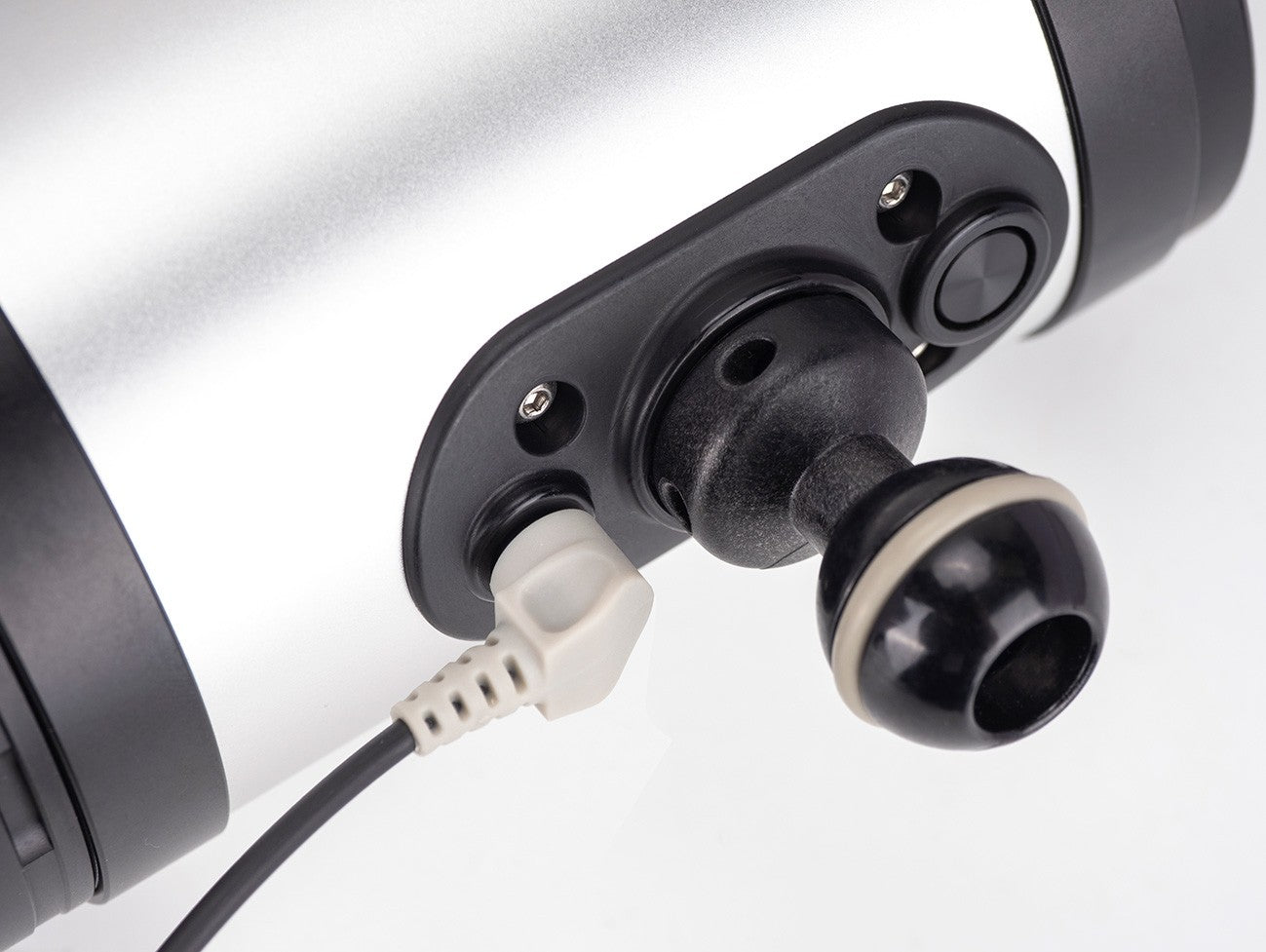

| MOUNTING |
Ball Mount |
| DIMENSIONS |
205mm (L) X 91mm (W) X 133.5mm (H) |
| WEIGHT |
On Land |
Approx. 1,180 g (w / Batt) |
| Underwater |
Approx. 230 g (w / Batt) |
| STANDARD ACCESSORIES |

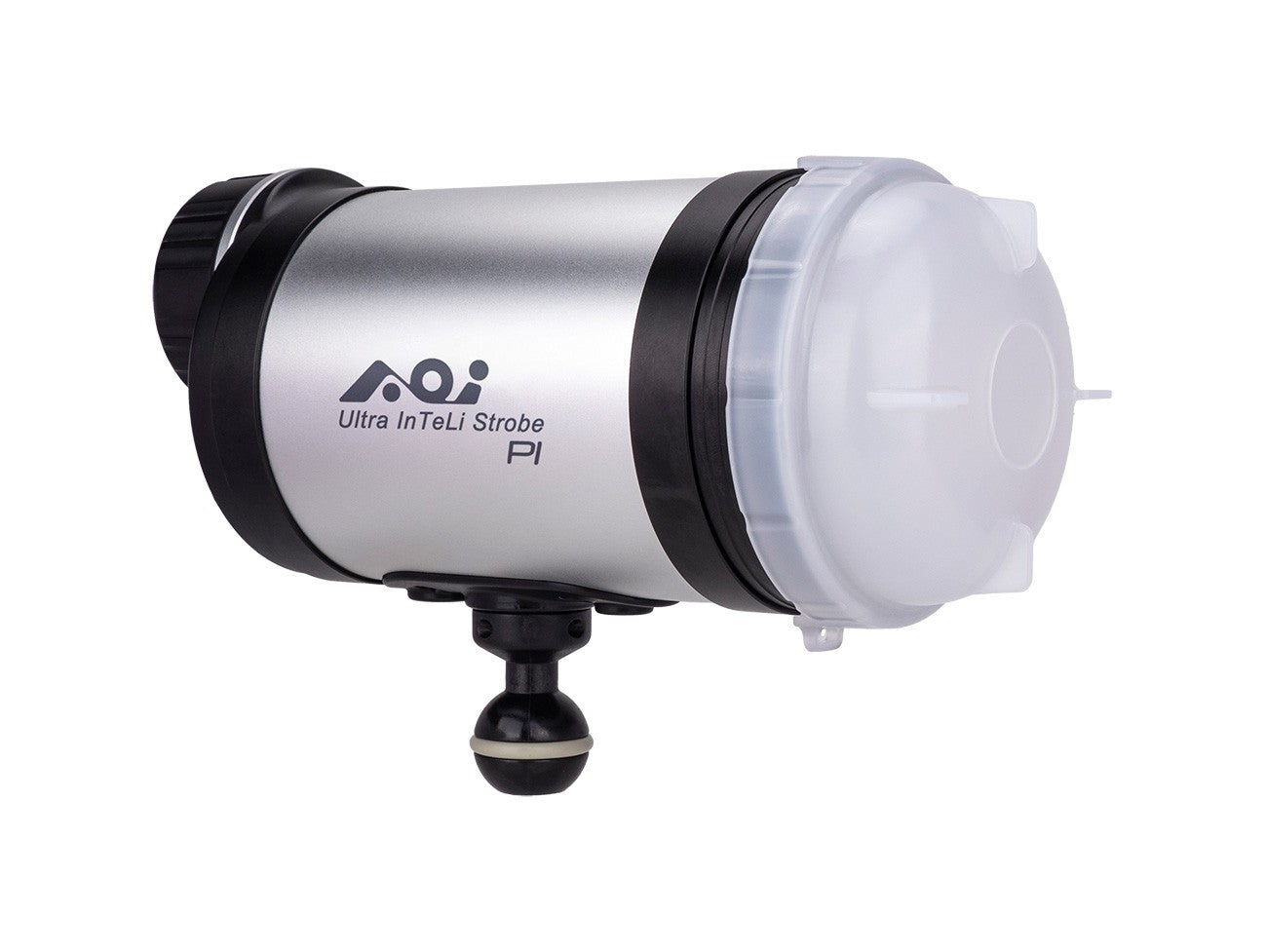

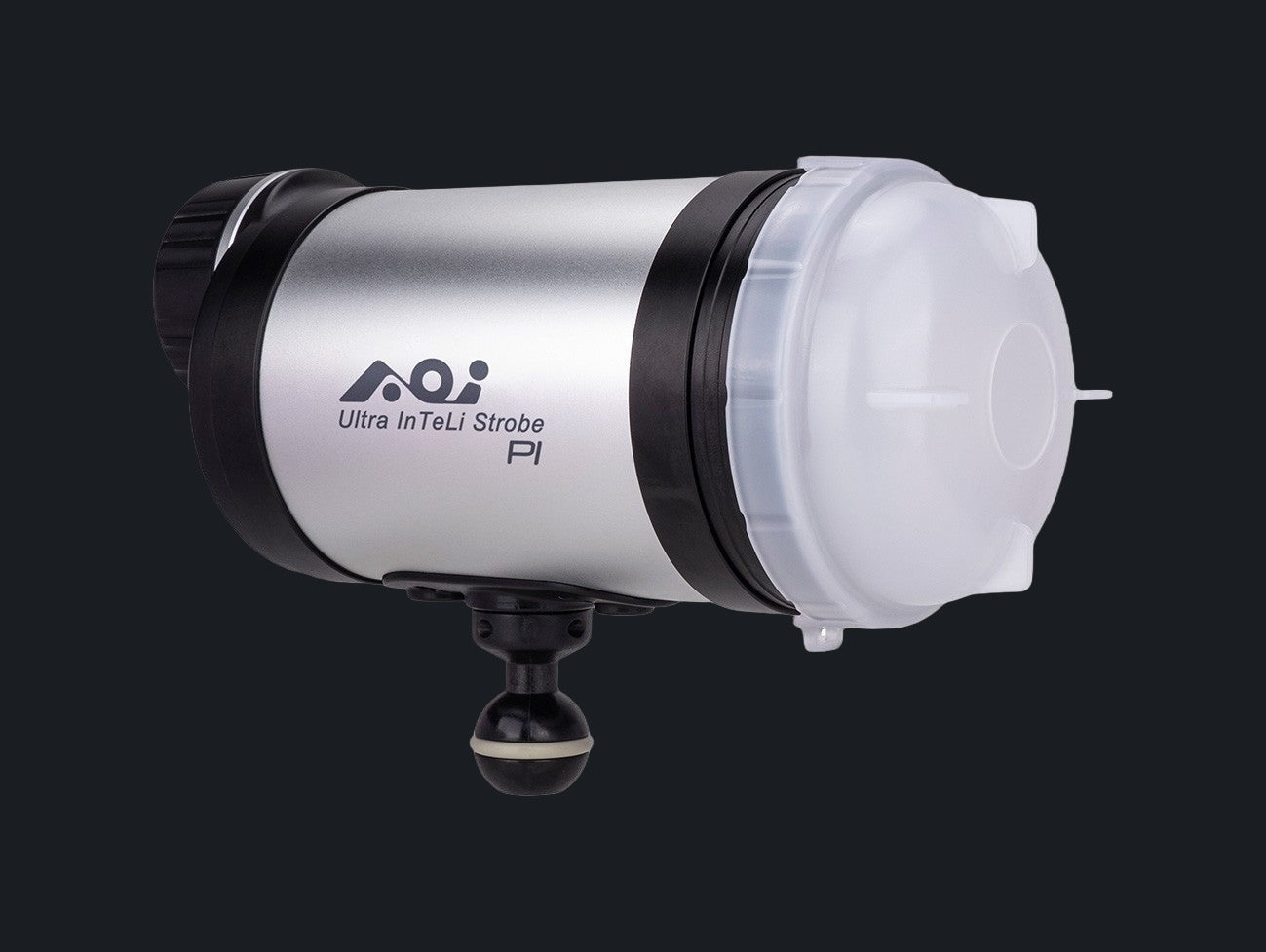

Standard Diffusor Strobe x1pc., Diffusor Lanyard x1pc., |
| Ball Mount x1pc., Allen Key x1pc., |
| Spare Battery Cap Seal-ring x2pcs, Control Knob Extension x1pc., |
| O-Ring Remover (AOI ORR-02) x1pc., |
| Silicone Grease (AOI SIGR-2) x1pc., Battery Storage Case x1pc. |
